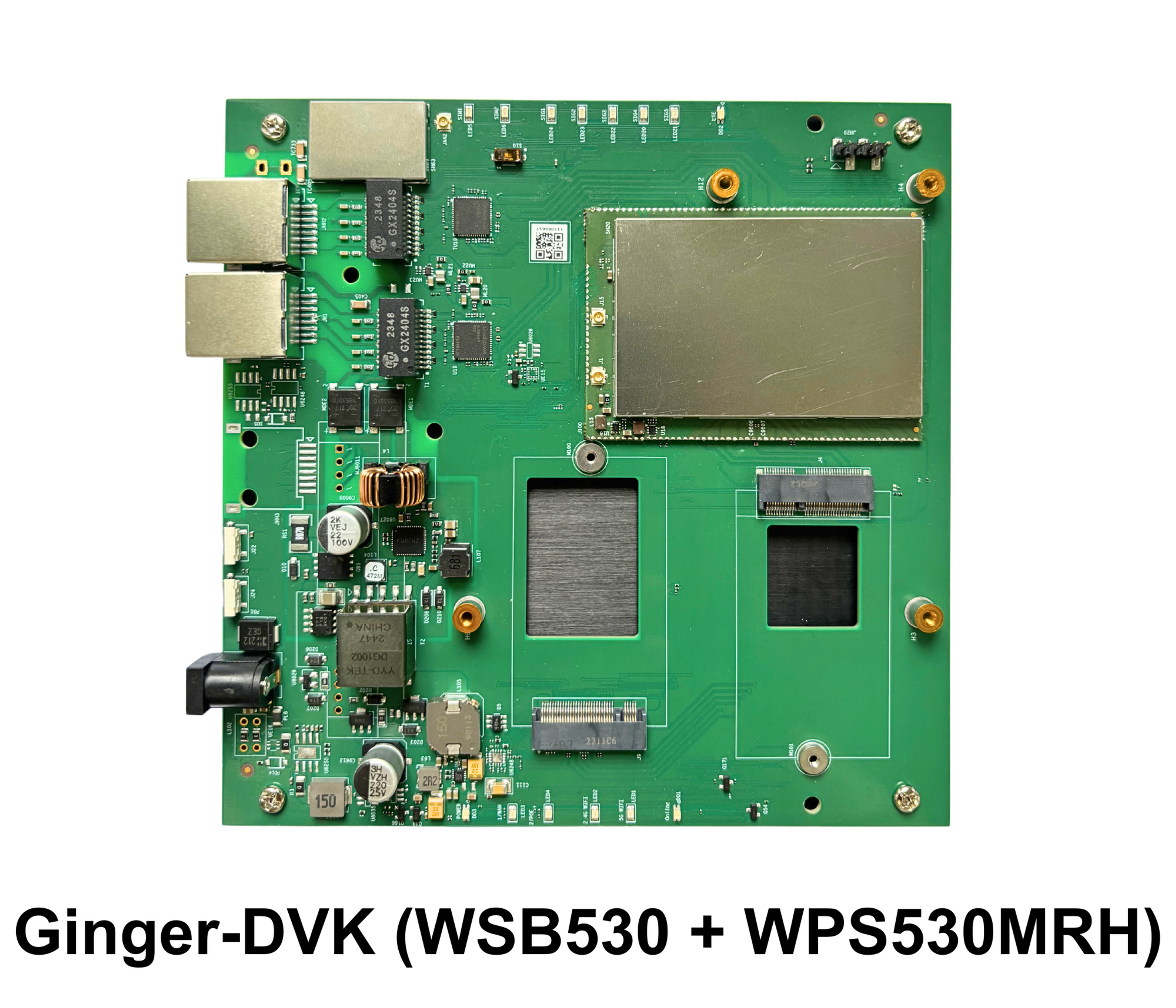

Ginger-DVK WSB530+WPS530MRH
Bundle of WSB530 (IPQ5322 WiFi 7 2×2 MU-MIMO 2.4GHz System on Module) + WPS530MRH Development Board
Specifications
- Qualcomm IPQ5322 Quad-Core ARM-A53 @ 1.5GHz processor ‘Miami’ Series
- 1GB, DDR4 16-bit (1×16-bit) interface
- 8MB NOR flash, 16GB EMMC
- 1x M.2 E Key socket with PCIe 3.0, 1x M.2 B Key socket with PCIe 3.0
- On-baord Radio 2.4GHz, max 22dBm per chain, up to 688Mbps
- Available Interface:
33x GPIOs, 2x PCIe 3.0, 1x USB3.0 (or 1x USB2.0 + PCIe 3.0 Option), 3x BLSP ports for UART, I²C and SPI interfaces, 2x multi-GbE Ethernet SedDes supporting external 10G/5G/2.5G/1G PHYs - Concurrent Tri-Band Wi-Fi 7 and 5G cellular/LTE support
- -20°C to 70°C operating temperature
- 142mm × 142mm × 21mm (W x H x D)
$189.00Price
